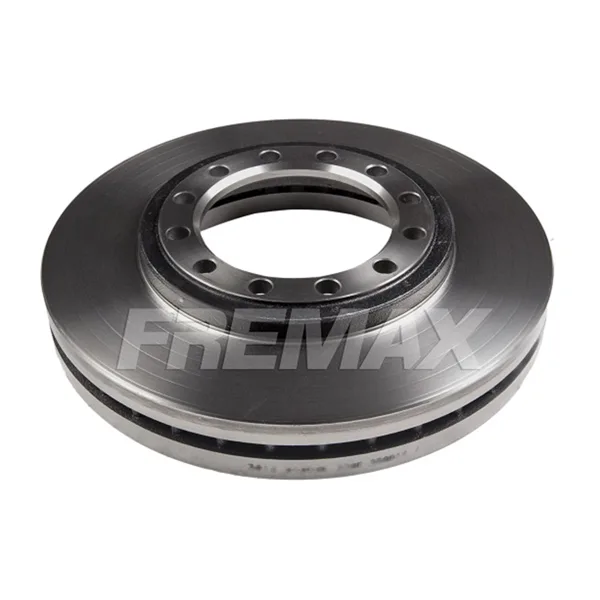

Disco Ventilado Delantero · Disco Ventilado Delantero
Disco Ventilado Delantero

Disco Ventilado Delantero

No. parteBD3016

Especificaciones técnicas

Acabado de la copaDisco Pintado – Pintura Negra
Acabado del discoStop and Go - Ranuras Concéntricas
Altura(mm)57.5 mm
Altura(pulg)2.26 pulg
Arillo ABS incluidoNo
Cantidad de birlos12
ConstrucciónFundición Completa
Diámetro de la cuerda del birlo(mm)0.49 mm
Diámetro entre barrenos/birlos(-)(mm)136 mm
Diámetro entre barrenos/birlos(-)(pulg)5.35 pulg
Diámetro exterior(mm)293.4 mm
Diámetro exterior(pulg)11.55 pulg
Diámetro interno(mm)110 mm
Diámetro interno(pulg)4.33070866141732 pulg
Espesor mínimo de reemplazo(mm)37 mm
Espesor mínimo de reemplazo(pulg)1.46 pulg
Espesor nominal(mm)40 mm
Espesor nominal(pulg)1.57 pulg
MaterialFundicion de Hierro Gris
Protector anti-corrosiónSi
RanuradoNo
Tipo de disco (sólido o ventilado)Ventilado
Tipo de GradoPerformance
Tipo de superficieStop and Go - Ranuras Concéntricas

Vehículos compatibles con Disco Ventilado Delantero (BD3016)

Compatible con 235 versiones · mostrando 100

MarcaModeloSubmodeloAñoMotor
ChevroletLCF 3500Base20186.0 V 5967 8 L96 OHV 16
ChevroletLCF 3500Base20176.0 V 5967 8 L96 OHV 16
ChevroletLCF 3500Base20166.0 V 5967 8 L96 OHV 16
ChevroletLCF 3500Base20166.0 V 5967 8 LC8 OHV 16
ChevroletW3500 TiltmasterW3S04220095.2 L - 4 4HK1 U/K U/K
ChevroletW3500 TiltmasterW3S04220096.0 V 5967 8 LQ4 OHV 16
ChevroletW3500 TiltmasterW3S04220085.2 L - 4 4HK1 U/K U/K
ChevroletW3500 TiltmasterW3S04220086.0 V 5967 8 LQ4 OHV 16
ChevroletW3500 TiltmasterW3S04220075.2 L - 4 4HK1 U/K U/K
ChevroletW3500 TiltmasterW3S04220076.0 V 5967 8 LQ4 OHV 16
ChevroletW3500 TiltmasterW3S04220066.0 V 5967 8 LQ4 OHV 16
ChevroletW3500 TiltmasterW3S04220065.2 L - 4 4HK1 U/K U/K
ChevroletW3500 TiltmasterW3S04220055.2 L - 4 4HK1 U/K U/K
ChevroletW3500 TiltmasterW3S04220056.0 V 5967 8 LQ4 OHV 16
ChevroletW3500 TiltmasterW3S04220046.0 V 5967 8 LQ4 OHV 16
ChevroletW3500 TiltmasterW3S04220044.8 L - 4 4HE1 U/K U/K
ChevroletW3500 TiltmasterW3S04220035.7 V - 8 L31 OHV 16
ChevroletW3500 TiltmasterW3S04220034.8 L - 4 4HE1 U/K U/K
ChevroletW3500 TiltmasterW3S04220036.0 V 5967 8 LQ4 OHV 16
ChevroletW3500 TiltmasterW3S04220025.7 V - 8 L31 OHV 16
ChevroletW3500 TiltmasterW3S04220024.8 L - 4 4HE1 U/K U/K
ChevroletW3500 TiltmasterW3S04220014.8 L - 4 4HE1 U/K U/K
ChevroletW3500 TiltmasterW3S04220015.7 V - 8 L31 OHV 16
ChevroletW3500 TiltmasterW3S04220004.8 L - 4 4HE1 U/K U/K
ChevroletW3500 TiltmasterW3S04220005.7 V - 8 L31 OHV 16
ChevroletW3500 TiltmasterW3S04219995.7 V - 8 L31 OHV 16
ChevroletW3500 TiltmasterW3S04219994.8 L - 4 4HE1 U/K U/K
ChevroletW3500 TiltmasterW3S04219983.9 L - 4 4BD2 U/K U/K
ChevroletW3500 TiltmasterW3S04219985.7 V - 8 L31 OHV 16
ChevroletW3500 TiltmasterW3S04219973.9 L - 4 4BD2 U/K U/K
ChevroletW3500 TiltmasterW3S04219975.7 V - 8 L31 OHV 16
ChevroletW4500 TiltmasterW4S04220106.0 V 5967 8 LQ4 OHV 16
ChevroletW4500 TiltmasterW4S04220105.2 L - 4 4HK1 U/K U/K
ChevroletW4500 TiltmasterW4S04220095.2 L - 4 4HK1 U/K U/K
ChevroletW4500 TiltmasterW4S04220096.0 V 5967 8 LQ4 OHV 16
ChevroletW4500 TiltmasterW4S04220085.2 L - 4 4HK1 U/K U/K
ChevroletW4500 TiltmasterW4S04220086.0 V 5967 8 LQ4 OHV 16
ChevroletW4500 TiltmasterW4S04220075.2 L - 4 4HK1 U/K U/K
ChevroletW4500 TiltmasterW4S04220076.0 V 5967 8 LQ4 OHV 16
ChevroletW4500 TiltmasterW4S04220065.2 L - 4 4HK1 U/K U/K
ChevroletW4500 TiltmasterW4S04220066.0 V 5967 8 LQ4 OHV 16
ChevroletW4500 TiltmasterW4S04220055.2 L - 4 4HK1 U/K U/K
ChevroletW4500 TiltmasterW4S04220056.0 V 5967 8 LQ4 OHV 16
ChevroletW4500 TiltmasterW4S04220044.8 L - 4 4HE1 U/K U/K
ChevroletW4500 TiltmasterW4S04220046.0 V 5967 8 LQ4 OHV 16
ChevroletW4500 TiltmasterW4S04220036.0 V 5967 8 LQ4 OHV 16
ChevroletW4500 TiltmasterW4S04220035.7 V - 8 L31 OHV 16
ChevroletW4500 TiltmasterW4S04220034.8 L - 4 4HE1 U/K U/K
ChevroletW4500 TiltmasterW4S04220025.7 V - 8 L31 OHV 16
ChevroletW4500 TiltmasterW4S04220024.8 L - 4 4HE1 U/K U/K
ChevroletW4500 TiltmasterW4S04220014.8 L - 4 4HE1 U/K U/K
ChevroletW4500 TiltmasterW4S04220015.7 V - 8 L31 OHV 16
ChevroletW4500 TiltmasterW4S04220005.7 V - 8 L31 OHV 16
ChevroletW4500 TiltmasterW4S04220004.8 L - 4 4HE1 U/K U/K
ChevroletW4500 TiltmasterW4S04219995.7 V - 8 L31 OHV 16
ChevroletW4500 TiltmasterW4S04219994.8 L - 4 4HE1 U/K U/K
ChevroletW4500 TiltmasterW4S04219985.7 V - 8 L31 OHV 16
ChevroletW4500 TiltmasterW4S04219983.9 L - 4 4BD2 U/K U/K
GMCW3500 ForwardW3S04220085.2 L - 4 4HK1 U/K U/K
GMCW3500 ForwardW3S04220086.0 V 5967 8 LQ4 OHV 16
GMCW3500 ForwardW3S04220076.0 V 5967 8 LQ4 OHV 16
GMCW3500 ForwardW3S04220075.2 L - 4 4HK1 U/K U/K
GMCW3500 ForwardW3S04220065.2 L - 4 4HK1 U/K U/K
GMCW3500 ForwardW3S04220066.0 V 5967 8 LQ4 OHV 16
GMCW3500 ForwardW3S04220056.0 V 5967 8 LQ4 OHV 16
GMCW3500 ForwardW3S04220055.2 L - 4 4HK1 U/K U/K
GMCW3500 ForwardW3S04220044.8 L - 4 4HE1 U/K U/K
GMCW3500 ForwardW3S04220046.0 V 5967 8 LQ4 OHV 16
GMCW3500 ForwardW3S04220035.7 V - 8 L31 OHV 16
GMCW3500 ForwardW3S04220034.8 L - 4 4HE1 U/K U/K
GMCW3500 ForwardW3S04220024.8 L - 4 4HE1 U/K U/K
GMCW3500 ForwardW3S04220025.7 V - 8 L31 OHV 16
GMCW3500 ForwardW3S04220014.8 L - 4 4HE1 U/K U/K
GMCW3500 ForwardW3S04220015.7 V - 8 L31 OHV 16
GMCW3500 ForwardW3S04220005.7 V - 8 L31 OHV 16
GMCW3500 ForwardW3S04220004.8 L - 4 4HE1 U/K U/K
GMCW3500 ForwardW3S04219995.7 V - 8 L31 OHV 16
GMCW3500 ForwardW3S04219994.8 L - 4 4HE1 U/K U/K
GMCW3500 ForwardW3S04219983.9 L - 4 4BD2 U/K U/K
GMCW3500 ForwardW3S04219985.7 V - 8 L31 OHV 16
GMCW3500 ForwardW3S04219973.9 L - 4 4BD2 U/K U/K
GMCW3500 ForwardW3S04219975.7 V - 8 L31 OHV 16
GMCW4500 ForwardW4S04220096.0 V 5967 8 LQ4 OHV 16
GMCW4500 ForwardW4S04220095.2 L - 4 4HK1 U/K U/K
GMCW4500 ForwardW4S04220085.2 L - 4 4HK1 U/K U/K
GMCW4500 ForwardW4S04220086.0 V 5967 8 LQ4 OHV 16
GMCW4500 ForwardW4S04220075.2 L - 4 4HK1 U/K U/K
GMCW4500 ForwardW4S04220076.0 V 5967 8 LQ4 OHV 16
GMCW4500 ForwardW4S04220065.2 L - 4 4HK1 U/K U/K
GMCW4500 ForwardW4S04220066.0 V 5967 8 LQ4 OHV 16
GMCW4500 ForwardW4S04220056.0 V 5967 8 LQ4 OHV 16
GMCW4500 ForwardW4S04220055.2 L - 4 4HK1 U/K U/K
GMCW4500 ForwardW4S04220044.8 L - 4 4HE1 U/K U/K
GMCW4500 ForwardW4S04220046.0 V 5967 8 LQ4 OHV 16
GMCW4500 ForwardW4S04220034.8 L - 4 4HE1 U/K U/K
GMCW4500 ForwardW4S04220036.0 V 5967 8 LQ4 OHV 16
GMCW4500 ForwardW4S04220035.7 V - 8 L31 OHV 16
GMCW4500 ForwardW4S04220024.8 L - 4 4HE1 U/K U/K
GMCW4500 ForwardW4S04220025.7 V - 8 L31 OHV 16
GMCW4500 ForwardW4S04220014.8 L - 4 4HE1 U/K U/K

← Desliza para ver más →
