Todos los sistemas · Falda de pistón para motor Diesel
Todos los sistemasMORESA

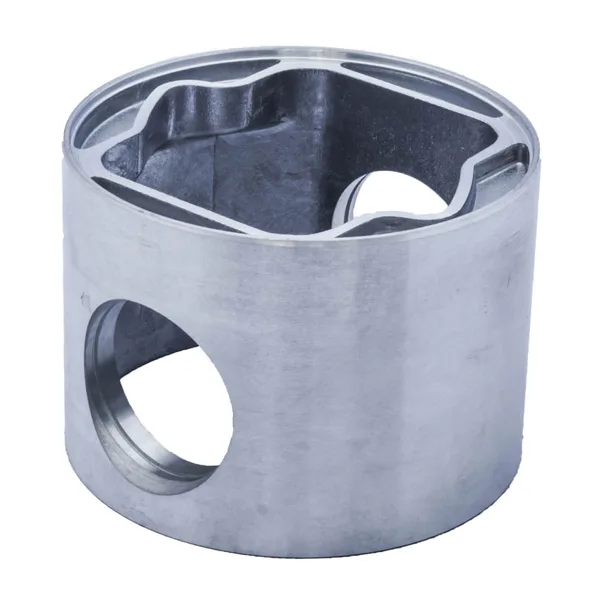

Falda de pistón para motor Diesel

No. parte7036F STD

Especificaciones técnicas

Buje para Perno IncorporadoNo
Cumple o Excede la Especificación OEMSi
Diámetro de Cazuela (mm)72.6 mm
Diámetro de Cazuela (pulg)2.858 pulg
Diámetro del Cilindro (mm)116.59 mm
Diámetro del Cilindro (pulg)4.59 pulg
Diámetro Exterior del Perno (mm)46.36 mm
Diámetro Exterior del Perno (pulg)1.825 pulg
Diámetro Nominal del Pistón (mm)116.47 mm
Diámetro Nominal del Pistón (pulg)4.585 pulg
Distancia de Compresión (mm)81.7 mm
Distancia de Compresión (pulg)3.217 pulg
Espesor 1er Anillo de Compresión (mm)2.2 mm
Espesor 1er Anillo de Compresión (pulg)0.08 pulg
Espesor 2do Anillo de Compresión (mm)3 mm
Espesor 2do Anillo de Compresión (pulg)0.118 pulg
Espesor Anillo de Aceite (mm)4 mm
Espesor Anillo de Aceite (pulg)0.157 pulg
Longitud del Perno (mm)96.75 mm
Longitud del Perno (pulg)3.809 pulg
Lubricante de Ensamble IncluidoNo
Material del AnilloHierro Gris
Material del PernoAcero
Material del PistónAcero y Aluminio
NotaStandard Size. 4.59incylinder diameter. Piston head type Dish. 3.809in Piston pin length
PosiciónN / A
Profundidad Cazuela ó Altura Domo (mm)-22.10 mm
Profundidad Cazuela ó Altura Domo (pulg)-0.870 pulg
SobremedidaNo
Tipo de Cabeza de PistónCazuela
Tipo de Ensamble del PernoFlotante
Tipo de FaldaParcial
Tipo de GradoRegular

Vehículos compatibles con Falda de pistón para motor Diesel (7036F STD)

Compatible con 160 versiones · mostrando 100

MarcaModeloSubmodeloAñoMotor
IC Corporation3000 ICBase20028.7 L 8687 6 DT530 U/K 12
IC CorporationRE CommercialBase20048.7 L 8687 6 DT530 U/K 12
IC CorporationRE CommercialBase20038.7 L 8687 6 DT530 U/K 12
IC CorporationRE School BusBase20048.7 L 8687 6 DT530 U/K 12
IC CorporationRE School BusBase20038.7 L 8687 6 DT530 U/K 12
International2554Base20028.7 L 8687 6 DT530 U/K 12
International2554Base20018.7 L 8687 6 DT530 U/K 12
International2554Base20008.7 L 8687 6 DT530 U/K 12
International2554Base19998.7 L 8687 6 DT530 U/K 12
International2554Base19988.7 L 8687 6 DT530 U/K 12
International2554Base19978.7 L 8687 6 DT530 U/K 12
International2554Base19968.7 L 8687 6 DT530 U/K 12
International2554Base19958.7 L 8687 6 DT530 U/K 12
International2574Base20038.7 L 8687 6 DT530 U/K 12
International2574Base20028.7 L 8687 6 DT530 U/K 12
International2574Base20018.7 L 8687 6 DT530 U/K 12
International2574Base20008.7 L 8687 6 DT530 U/K 12
International2574Base19998.7 L 8687 6 DT530 U/K 12
International2574Base19988.7 L 8687 6 DT530 U/K 12
International2574Base19978.7 L 8687 6 DT530 U/K 12
International2574Base19968.7 L 8687 6 DT530 U/K 12
International2574Base19958.7 L 8687 6 DT530 U/K 12
International2574Base19948.7 L 8687 6 DT530 U/K 12
International2654Base20028.7 L 8687 6 DT530 U/K 12
International2654Base20018.7 L 8687 6 DT530 U/K 12
International2654Base20008.7 L 8687 6 DT530 U/K 12
International2654Base19998.7 L 8687 6 DT530 U/K 12
International2654Base19988.7 L 8687 6 DT530 U/K 12
International2654Base19978.7 L 8687 6 DT530 U/K 12
International2654Base19968.7 L 8687 6 DT530 U/K 12
International2654Base19958.7 L 8687 6 DT530 U/K 12
International2674Base20038.7 L 8687 6 DT530 U/K 12
International2674Base20028.7 L 8687 6 DT530 U/K 12
International2674Base20018.7 L 8687 6 DT530 U/K 12
International2674Base20008.7 L 8687 6 DT530 U/K 12
International2674Base19998.7 L 8687 6 DT530 U/K 12
International2674Base19988.7 L 8687 6 DT530 U/K 12
International2674Base19978.7 L 8687 6 DT530 U/K 12
International2674Base19968.7 L 8687 6 DT530 U/K 12
International2674Base19958.7 L 8687 6 DT530 U/K 12
International2674Base19948.7 L 8687 6 DT530 U/K 12
International3000REBase20028.7 L - 6 DT530 U/K U/K
International3000REBase20008.7 L 8687 6 DT530 U/K 12
International3200Base20048.7 L - 6 DT530 U/K U/K
International3200Base20038.7 L - 6 DT530 U/K U/K
International4400Base20068.7 L 8687 6 DT530 U/K 12
International4400Base20058.7 L 8687 6 DT530 U/K 12
International4400Base20048.7 L 8687 6 DT530 U/K 12
International4400Base20038.7 L 8687 6 DT530 U/K 12
International4400Base20028.7 L 8687 6 DT530 U/K 12
International4400LPBase20058.7 L - 6 DT530 U/K U/K
International4400LPBase20048.7 L - 6 DT530 U/K U/K
International4400LPBase20038.7 L - 6 DT530 U/K U/K
International4400LPBase20028.7 L - 6 DT530 U/K U/K
International4700Base20038.7 L 8687 6 DT530 U/K 12
International4700Base20028.7 L 8687 6 DT530 U/K 12
International4700Base20018.7 L 8687 6 DT530 U/K 12
International4700Base20008.7 L 8687 6 DT530 U/K 12
International4700Base19998.7 L 8687 6 DT530 U/K 12
International4700Base19988.7 L 8687 6 DT530 U/K 12
International4700Base19978.7 L 8687 6 DT530 U/K 12
International4700Base19968.7 L - 6 DT530 U/K U/K
International4700LPBase20028.7 L - 6 DT530 U/K U/K
International4700LPBase20018.7 L - 6 DT530 U/K U/K
International4700LPBase20008.7 L - 6 DT530 U/K U/K
International4700LPBase19998.7 L - 6 DT530 U/K U/K
International4700LPBase19988.7 L - 6 DT530 U/K U/K
International4700LPBase19978.7 L - 6 DT530 U/K U/K
International4800Base20038.7 L 8687 6 DT530 U/K 12
International4800Base20028.7 L 8687 6 DT530 U/K 12
International4800Base20018.7 L 8687 6 DT530 U/K 12
International4800Base20008.7 L 8687 6 DT530 U/K 12
International4800Base19998.7 L 8687 6 DT530 U/K 12
International4800Base19988.7 L 8687 6 DT530 U/K 12
International4800Base19978.7 L 8687 6 DT530 U/K 12
International4800Base19968.7 L 8687 6 DT530 U/K 12
International4900Base20048.7 L 8687 6 DT530 U/K 12
International4900Base20038.7 L 8687 6 DT530 U/K 12
International4900Base20028.7 L 8687 6 DT530 U/K 12
International4900Base20018.7 L 8687 6 DT530 U/K 12
International4900Base20008.7 L 8687 6 DT530 U/K 12
International4900Base19998.7 L 8687 6 DT530 U/K 12
International4900Base19988.7 L 8687 6 DT530 U/K 12
International4900Base19978.7 L 8687 6 DT530 U/K 12
International4900Base19968.7 L 8687 6 DT530 U/K 12
International4900Base19958.7 L 8687 6 DT530 U/K 12
International4900Base19948.7 L 8687 6 DT530 U/K 12
International5000Base20008.7 L 8687 6 DT530 U/K 12
International5000Base19998.7 L 8687 6 DT530 U/K 12
International5000Base19988.7 L 8687 6 DT530 U/K 12
International5000Base19978.7 L 8687 6 DT530 U/K 12
International5000Base19968.7 L 8687 6 DT530 U/K 12
International5000Base19958.7 L 8687 6 DT530 U/K 12
International5070Base20008.7 L 8687 6 DT530 U/K 12
International5070Base19998.7 L 8687 6 DT530 U/K 12
International5070Base19988.7 L 8687 6 DT530 U/K 12
International5070Base19978.7 L 8687 6 DT530 U/K 12
International5070Base19968.7 L 8687 6 DT530 U/K 12
International5070Base19958.7 L 8687 6 DT530 U/K 12
International5500iBase20058.7 L 8687 6 DT530 U/K 12
