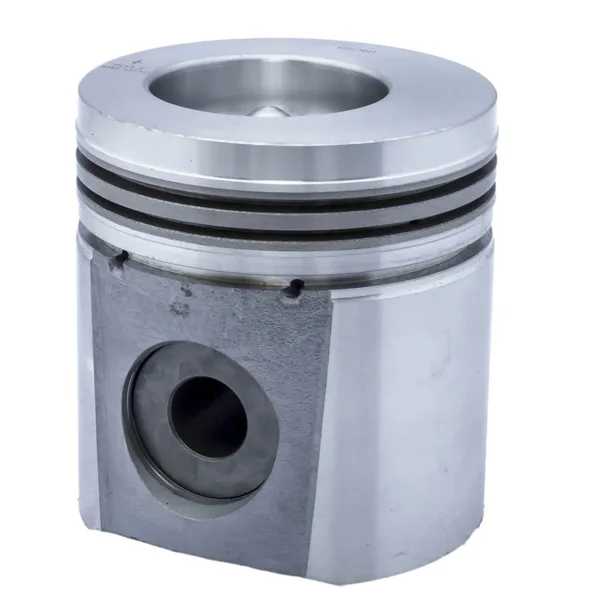

Pistón para motor Diesel

Name: Pistón para motor Diesel
Brand: MORESA
SKU: 7017 STD

No. parte7017 STD

Especificaciones técnicas

Buje para Perno IncorporadoNo

Cumple o Excede la Especificación OEMSi

Diámetro de Cazuela (mm)63.4 mm

Diámetro de Cazuela (pulg)2.496 pulg

Diámetro del Cilindro (mm)114 mm

Diámetro del Cilindro (pulg)4.488 pulg

Diámetro Exterior del Perno (mm)45 mm

Diámetro Exterior del Perno (pulg)1.772 pulg

Diámetro Nominal del Pistón (mm)113.87 mm

Diámetro Nominal del Pistón (pulg)4.483 pulg

Distancia de Compresión (mm)78.82 mm

Distancia de Compresión (pulg)3.103 pulg

Espesor 1er Anillo de Compresión (mm)3.57 mm

Espesor 1er Anillo de Compresión (pulg)0.14 pulg

Espesor 2do Anillo de Compresión (mm)3.17 mm

Espesor 2do Anillo de Compresión (pulg)0.124 pulg

Espesor Anillo de Aceite (mm)3.96 mm

Espesor Anillo de Aceite (pulg)0.155 pulg

Longitud del Perno (mm)91 mm

Longitud del Perno (pulg)3.583 pulg

Lubricante de Ensamble IncluidoNo

Material del AnilloHierro Gris

Material del PernoAcero

Material del PistónAleación de Aluminio

NotaStandard Size. 4.488incylinder diameter. Piston head type Dish. 3.583in Piston pin length

PosiciónN / A

Profundidad Cazuela ó Altura Domo (mm)-21.80 mm

Profundidad Cazuela ó Altura Domo (pulg)-0.858 pulg

SobremedidaNo

Tipo de Cabeza de PistónCazuela

Tipo de Ensamble del PernoFlotante

Tipo de FaldaCompleta

Tipo de GradoRegular

Vehículos compatibles con Pistón para motor Diesel (7017 STD)

Compatible con 871 versiones · mostrando 100

Marca	Modelo	Submodelo	Año	Motor
American LaFrance	ALF Eagle	Base	2002	8.3 L 8268 6 6CT8.3 U/K 12
American LaFrance	ALF Eagle	Base	2001	8.3 L 8268 6 6CT8.3 U/K 12
American LaFrance	ALF Eagle	Base	2000	8.3 L 8268 6 6CT8.3 U/K 12
American LaFrance	ALF Eagle	Base	1999	8.3 L 8268 6 6CT8.3 U/K 12
American LaFrance	Metropolitan	Base	2002	8.3 L 8268 6 6CT8.3 U/K 12
American LaFrance	Metropolitan	Base	2001	8.3 L 8268 6 6CT8.3 U/K 12
American LaFrance	Metropolitan	Base	2000	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3109-3400	2002	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3401-3502	2002	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3707-3808	2002	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3904-4100	2002	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3707-3808	2001	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3809-3903	2001	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3904-4100	2001	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3401-3502	2001	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3503-3604	2001	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3109-3400	2000	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3401-3502	2000	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3605-3706	2000	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3707-3808	2000	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3904-4100	2000	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3401-3502	1999	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3809-3903	1999	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3605-3706	1998	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3809-3903	1998	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3401-3502	1998	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3809-3903	1997	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3809-3903	1996	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3401-3502	1996	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3605-3706	1996	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3605-3706	1995	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3809-3903	1995	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3109-3400	1994	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3401-3502	1994	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3605-3706	1994	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3707-3808	1994	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3809-3903	1994	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3401-3502	1993	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3503-3604	1993	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3605-3706	1993	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3707-3808	1993	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3809-3903	1993	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3605-3706	1992	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3707-3808	1992	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3809-3903	1992	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC2810-3006	1992	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3007-3108	1992	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3401-3502	1992	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3503-3604	1992	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3109-3400	1991	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3401-3502	1991	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3605-3706	1991	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3707-3808	1991	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3809-3903	1991	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3007-3108	1991	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC2701-2809	1990	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC2810-3006	1990	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3007-3108	1990	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3401-3502	1990	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3503-3604	1990	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3605-3706	1990	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3707-3808	1990	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3809-3903	1990	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3401-3502	1989	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3605-3706	1989	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3707-3808	1989	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American FE	AAC3809-3903	1989	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3109-3400	2002	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3401-3502	2002	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3605-3706	2002	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3904-4100	2002	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3109-3400	2001	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3401-3502	2001	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3605-3706	2001	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3904-4100	2001	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3904-4100	2000	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3109-3400	2000	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3401-3502	2000	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3605-3706	2000	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3503-3604	1999	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3605-3706	1999	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3809-3903	1999	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3904-4100	1999	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3503-3604	1998	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3605-3706	1998	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3809-3903	1998	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3809-3903	1997	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3605-3706	1997	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3503-3604	1996	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3605-3706	1996	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3809-3903	1996	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3605-3706	1995	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3809-3903	1995	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3809-3903	1994	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3503-3604	1994	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3605-3706	1994	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3707-3808	1994	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3605-3706	1993	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3809-3903	1993	8.3 L 8268 6 6CT8.3 U/K 12
Blue Bird	All American RE	AAC3503-3604	1993	8.3 L 8268 6 6CT8.3 U/K 12

← Desliza para ver más →
