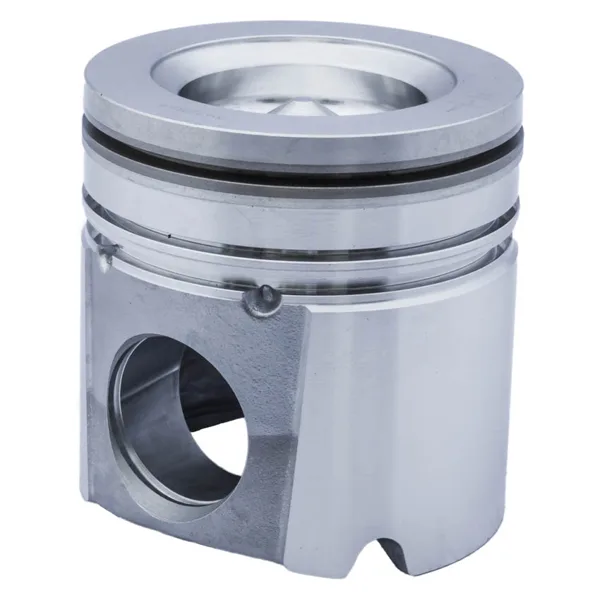

Pistón para motor Diesel

Name: Pistón para motor Diesel
Brand: MORESA
SKU: 7020 STD

No. parte7020 STD

Especificaciones técnicas

Buje para Perno IncorporadoNo

Cumple o Excede la Especificación OEMSi

Diámetro de Cazuela (mm)70 mm

Diámetro de Cazuela (pulg)2.756 pulg

Diámetro del Cilindro (mm)102 mm

Diámetro del Cilindro (pulg)4.015 pulg

Diámetro Exterior del Perno (mm)40 mm

Diámetro Exterior del Perno (pulg)1.5748031496063 pulg

Diámetro Nominal del Pistón (mm)101.87 mm

Diámetro Nominal del Pistón (pulg)4.01 pulg

Distancia de Compresión (mm)71.5 mm

Distancia de Compresión (pulg)2.815 pulg

Espesor 1er Anillo de Compresión (mm)2.8 mm

Espesor 1er Anillo de Compresión (pulg)0.110236220472441 pulg

Espesor 2do Anillo de Compresión (mm)2.4 mm

Espesor 2do Anillo de Compresión (pulg)0.094488188976378 pulg

Espesor Anillo de Aceite (mm)4 mm

Espesor Anillo de Aceite (pulg)0.15748031496063 pulg

Longitud del Perno (mm)82.85 mm

Longitud del Perno (pulg)3.26181102362205 pulg

Lubricante de Ensamble IncluidoNo

Material del AnilloHierro Gris

Material del PernoAcero

Material del PistónAleación de Aluminio

NotaStandard Size. 4.015incylinder diameter. Piston head type Dish. 3.262in Piston pin length

PosiciónN / A

Profundidad Cazuela ó Altura Domo (mm)-18.10 mm

Profundidad Cazuela ó Altura Domo (pulg)-0.713 pulg

SobremedidaNo

Tipo de Cabeza de PistónCazuela

Tipo de Ensamble del PernoFlotante

Tipo de FaldaCompleta

Tipo de GradoRegular

Vehículos compatibles con Pistón para motor Diesel (7020 STD)

Compatible con 353 versiones · mostrando 100

Marca	Modelo	Submodelo	Año	Motor
Blue Bird	All American FE	AAC3605-3706	2005	5.9 L - 6 ISB U/K U/K
Blue Bird	All American FE	AAC3904-4100	2005	5.9 L - 6 ISB U/K U/K
Blue Bird	All American FE	AAC3401-3502	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	All American FE	AAC3605-3706	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	All American FE	AAC3904-4100	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	All American FE	AAC3904-4100	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	All American FE	AAC3109-3400	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	All American FE	AAC3401-3502	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	All American FE	AAC3503-3604	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	All American FE	AAC3605-3706	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	All American FE	AAC3707-3808	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	All American FE	AAC3809-3903	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	All American RE	AAC3401-3502	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	All American RE	AAC3605-3706	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	All American RE	AAC3904-4100	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	All American RE	AAC3109-3400	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	All American RE	AAC3401-3502	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	All American RE	AAC3605-3706	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	All American RE	AAC3904-4100	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	Commercial Bus	COM2810-3006	2006	5.9 L - 6 ISB U/K U/K
Blue Bird	Commercial Bus	COM3503-3604	2006	5.9 L - 6 ISB U/K U/K
Blue Bird	Commercial Bus	COM2810-3006	2005	5.9 L - 6 ISB U/K U/K
Blue Bird	Commercial Bus	COM3503-3604	2005	5.9 L - 6 ISB U/K U/K
Blue Bird	Commercial Bus	COM2701-2809	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	Commercial Bus	COM2810-3006	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	Commercial Bus	COM3503-3604	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	Commercial Bus	COM3605-3706	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	Commercial Bus	COM3904-4100	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	Commercial Bus	COM2200-2509	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	Commercial Bus	COM2810-3006	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	Commercial Bus	COM3401-3502	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	SHL Commercial	SCM3904-4100	2007	5.9 L - 6 ISB U/K U/K
Blue Bird	SHL Commercial	SCM3503-3604	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	SHL Commercial	SCM3605-3706	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	SHL Commercial	SCM3904-4100	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	SHL TC2000	STC2701-2809	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	SHL TC2000	STC3109-3400	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	SHL TC2000	STC3401-3502	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC2701-2809	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC2810-3006	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC3109-3400	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC3401-3502	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC3503-3604	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC3605-3706	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC2200-2509	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC3707-3808	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC2510-2700	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC3904-4100	2004	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC2200-2509	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC3605-3706	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC2510-2700	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC3707-3808	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC2701-2809	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC3904-4100	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC2810-3006	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC3007-3108	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC3109-3400	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC3401-3502	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC3503-3604	2003	5.9 L - 6 ISB U/K U/K
Blue Bird	TC2000	TC2701-2809	2002	5.9 L - 6 6BT5.9 U/K 12
Crane Carrier	Equipment Carrier	Base	2004	5.9 L - 6 ISB U/K U/K
Crane Carrier	Equipment Carrier	Base	2002	5.9 L - 6 ISB U/K U/K
Crane Carrier	Low Entry	Base	2011	5.9 L - 6 ISB 5.9 U/K 24
Crane Carrier	Low Entry	Base	2010	5.9 L - 6 ISB 5.9 U/K 24
Crane Carrier	Low Entry	Base	2009	5.9 L - 6 ISB U/K U/K
Crane Carrier	Low Entry	Base	2006	5.9 L - 6 ISB U/K U/K
Crane Carrier	Low Entry	Base	2005	5.9 L - 6 ISB U/K U/K
Crane Carrier	Low Entry	Base	2003	5.9 L - 6 ISB U/K U/K
Crane Carrier	Low Entry	Base	2002	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider	Low Floor	2003	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider II	Low Floor	2007	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider II	Low Floor	2006	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider II	Low Floor	2005	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider II	Low Floor	2004	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider II	Low Floor	2003	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider II Max	Low Floor	2017	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider II Max	Low Floor	2016	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider II Max	Low Floor	2015	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider II Max	Low Floor	2014	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider II Max	Low Floor	2013	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider II Max	Low Floor	2012	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider II Max	Low Floor	2011	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider II Max	Low Floor	2010	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider II Max	Low Floor	2009	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider II Max	Low Floor	2008	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider II Max	Low Floor	2007	5.9 L - 6 ISB U/K U/K
El Dorado	E-Z Rider II Max	Low Floor	2006	5.9 L - 6 ISB U/K U/K
El Dorado	Escort RE	Base	2008	5.9 L - 6 ISB U/K U/K
El Dorado	Escort RE	Base	2007	5.9 L - 6 ISB U/K U/K
El Dorado	Escort RE	Base	2006	5.9 L - 6 ISB U/K U/K
El Dorado	Escort RE	Base	2005	5.9 L - 6 ISB U/K U/K
El Dorado	Escort RE	Base	2003	5.9 L - 6 ISB U/K U/K
El Dorado	Escort RE	Base	2002	5.9 L - 6 6BT5.9 U/K 12
El Dorado	Escort RE	Base	1998	5.9 L - 6 6BT5.9 U/K 12
El Dorado	Escort RE	Base	1996	5.9 L - 6 6BT5.9 U/K 12
El Dorado	Escort RE	Base	1995	5.9 L - 6 6BT5.9 U/K 12
El Dorado	Transmark RE	Base	2010	5.9 L - 6 ISB U/K U/K
El Dorado	Transmark RE	Base	2008	5.9 L - 6 ISB U/K U/K
El Dorado	Transmark RE	Base	2007	5.9 L - 6 ISB U/K U/K
El Dorado	Transmark RE	Base	2006	5.9 L - 6 ISB U/K U/K
