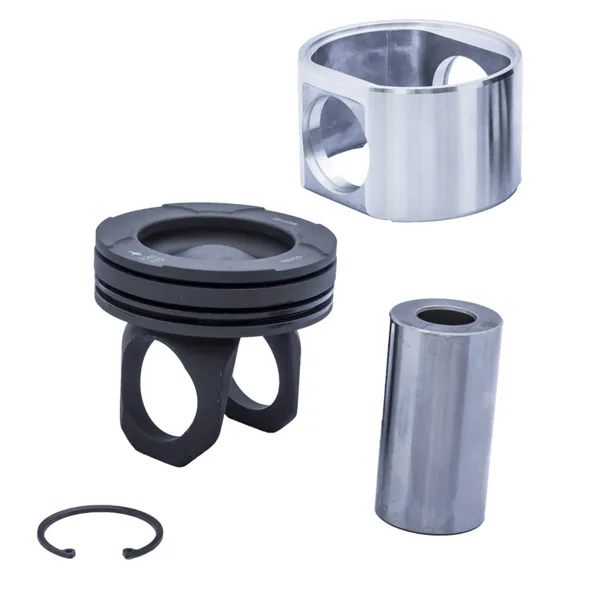

Pistón para motor Diesel

Name: Pistón para motor Diesel
Brand: MORESA
SKU: 7050 STD

No. parte7050 STD

Especificaciones técnicas

Buje para Perno IncorporadoNo

Cumple o Excede la Especificación OEMSi

Diámetro de Cazuela (mm)81.5 mm

Diámetro de Cazuela (pulg)3.209 pulg

Diámetro del Cilindro (mm)125 mm

Diámetro del Cilindro (pulg)4.921 pulg

Diámetro Exterior del Perno (mm)54 mm

Diámetro Exterior del Perno (pulg)2.126 pulg

Diámetro Nominal del Pistón (mm)124.88 mm

Diámetro Nominal del Pistón (pulg)4.916 pulg

Distancia de Compresión (mm)75.3 mm

Distancia de Compresión (pulg)2.965 pulg

Espesor 1er Anillo de Compresión (mm)3 mm

Espesor 1er Anillo de Compresión (pulg)0.118110236220472 pulg

Espesor 2do Anillo de Compresión (mm)3 mm

Espesor 2do Anillo de Compresión (pulg)0.118110236220472 pulg

Espesor Anillo de Aceite (mm)4 mm

Espesor Anillo de Aceite (pulg)0.15748031496063 pulg

Longitud del Perno (mm)102 mm

Longitud del Perno (pulg)4.016 pulg

Lubricante de Ensamble IncluidoNo

Material del AnilloHierro Gris

Material del PernoAcero

Material del PistónAcero y Aluminio

NotaStandard Size. 4.921incylinder diameter. Piston head type Dish. 4.016in Piston pin length. 1.494in bowl diameter

PosiciónN / A

Profundidad Cazuela ó Altura Domo (mm)-19.20 mm

Profundidad Cazuela ó Altura Domo (pulg)-0.756 pulg

SobremedidaNo

Tipo de Cabeza de PistónCazuela

Tipo de Ensamble del PernoFlotante

Tipo de FaldaParcial

Tipo de GradoRegular

Vehículos compatibles con Pistón para motor Diesel (7050 STD)

Compatible con 943 versiones · mostrando 100

Marca	Modelo	Submodelo	Año	Motor
American LaFrance	ALF Eagle	Base	2002	10.8 L 10834 6 M11 U/K 24
American LaFrance	ALF Eagle	Base	2001	10.8 L 10834 6 M11 U/K 24
American LaFrance	ALF Eagle	Base	2000	10.8 L 10834 6 M11 U/K 24
American LaFrance	ALF Eagle	Base	1999	10.8 L 10834 6 M11 U/K 24
American LaFrance	ALF Eagle	Base	1998	10.8 L 10834 6 M11 U/K 24
Blue Bird	All American RE	AAC3904-4100	1999	10.8 L 10834 6 M11 U/K 24
Blue Bird	Commercial Bus	COM3904-4100	1999	10.8 L 10834 6 M11 U/K 24
Blue Bird	Commercial Bus	COM3904-4100	1998	10.8 L 10834 6 M11 U/K 24
Blue Bird	TC2000	TC3401-3502	1999	10.8 L 10834 6 M11 U/K 24
Blue Bird	TC2000	TC3904-4100	1998	10.8 L 10834 6 M11 U/K 24
Blue Bird	Wanderlodge	WL3904-4100	2000	10.8 L 10834 6 M11 U/K 24
Blue Bird	Wanderlodge	WL3904-4100	1999	10.8 L 10834 6 M11 U/K 24
Blue Bird	Wanderlodge	WL3904-4100	1998	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Centurion	Base	2001	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Centurion	Base	1998	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Centurion	Base	1997	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Centurion	Base	1996	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Century II	Base	1998	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Drill Rig	Base	2001	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Drill Rig	Base	2000	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Drill Rig	Base	1999	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Drill Rig	Base	1998	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Drill Rig	Base	1996	10.8 L 10834 6 M11 U/K 24
Crane Carrier	IFL	Base	2000	10.8 L 10834 6 M11 U/K 24
Crane Carrier	IFL	Base	1999	10.8 L 10834 6 M11 U/K 24
Crane Carrier	IFL	Base	1998	10.8 L 10834 6 M11 U/K 24
Crane Carrier	IFL	Base	1997	10.8 L 10834 6 M11 U/K 24
Crane Carrier	IFL	Base	1996	10.8 L 10834 6 M11 U/K 24
Crane Carrier	IFL	Base	1995	10.8 L 10834 6 M11 U/K 24
Crane Carrier	IRL	Base	2000	10.8 L 10834 6 M11 U/K 24
Crane Carrier	IRL	Base	1999	10.8 L 10834 6 M11 U/K 24
Crane Carrier	IRL	Base	1998	10.8 L 10834 6 M11 U/K 24
Crane Carrier	IRL	Base	1997	10.8 L 10834 6 M11 U/K 24
Crane Carrier	IRL	Base	1996	10.8 L 10834 6 M11 U/K 24
Crane Carrier	IRL	Base	1995	10.8 L 10834 6 M11 U/K 24
Crane Carrier	ISL	Base	1996	10.8 L 10834 6 M11 U/K 24
Crane Carrier	ISL	Base	1995	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Low Entry	Base	2001	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Low Entry	Base	2000	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Low Entry	Base	1999	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Low Entry	Base	1998	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Low Entry	Base	1997	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Low Entry	Base	1996	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Low Entry	Base	1995	10.8 L 10834 6 M11 U/K 24
Crane Carrier	Low Entry	Base	1994	10.8 L 10834 6 M11 U/K 24
Diamond Reo	C120	C12064DB	1998	10.8 L 10834 6 M11 U/K 24
Duplex	D350	Base	1997	10.8 L 10834 6 M11 U/K 24
Duplex	D9400	Base	1996	10.8 L 10834 6 M11 U/K 24
Duplex	D9400	Base	1994	10.8 L 10834 6 M11 U/K 24
Duplex	D9500	Base	1995	10.8 L 10834 6 M11 U/K 24
Duplex	D9500	Base	1994	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	2014	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	2013	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	2012	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	2011	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	2010	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	2009	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	2008	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	2007	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	2006	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	2005	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	2002	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	2001	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	2000	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	1999	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	1998	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	1997	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	1996	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	1995	10.8 L 10834 6 M11 U/K 24
Emergency One	Emergency One	Base	1994	10.8 L 10834 6 M11 U/K 24
Flxible Transit Bus	Metro 35	Base	1995	10.8 L 10834 6 M11 U/K 24
Flxible Transit Bus	Metro 40	Base	1995	10.8 L 10834 6 M11 U/K 24
Flxible Transit Bus	Metro 40	Base	1994	10.8 L 10834 6 M11 U/K 24
Flxible Transit Bus	Metro 40	Base	1993	10.8 L 10834 6 M11 U/K 24
Ford	A9513	Base	1998	10.8 L 10834 6 M11 U/K 24
Ford	A9513	Base	1997	10.8 L 10834 6 M11 U/K 24
Ford	A9513	Base	1996	10.8 L 10834 6 M11 U/K 24
Ford	AT9513	Base	1998	10.8 L 10834 6 M11 U/K 24
Ford	AT9513	Base	1997	10.8 L 10834 6 M11 U/K 24
Ford	AT9513	Base	1996	10.8 L 10834 6 M11 U/K 24
Ford	AT9522	Base	1998	10.8 L 10834 6 M11 U/K 24
Ford	AT9522	Base	1997	10.8 L 10834 6 M11 U/K 24
Ford	L9000	Base	1997	10.8 L 10834 6 M11 U/K 24
Ford	L9000	Base	1996	10.8 L 10834 6 M11 U/K 24
Ford	L9000	Base	1995	10.8 L 10834 6 M11 U/K 24
Ford	L9501	Base	1998	10.8 L 10834 6 M11 U/K 24
Ford	L9501	Base	1997	10.8 L 10834 6 M11 U/K 24
Ford	L9511	Base	1998	10.8 L 10834 6 M11 U/K 24
Ford	L9513	Base	1998	10.8 L 10834 6 M11 U/K 24
Ford	L9513	Base	1997	10.8 L 10834 6 M11 U/K 24
Ford	L9513	Base	1996	10.8 L 10834 6 M11 U/K 24
Ford	LA9000	Base	1997	10.8 L 10834 6 M11 U/K 24
Ford	LA9000	Base	1996	10.8 L 10834 6 M11 U/K 24
Ford	LA9000	Base	1995	10.8 L 10834 6 M11 U/K 24
Ford	LA9000	Base	1994	10.8 L 10834 6 M11 U/K 24
Ford	LLA9000	Base	1997	10.8 L 10834 6 M11 U/K 24
Ford	LLA9000	Base	1996	10.8 L 10834 6 M11 U/K 24
Ford	LLA9000	Base	1995	10.8 L 10834 6 M11 U/K 24
Ford	LLA9000	Base	1994	10.8 L 10834 6 M11 U/K 24
Ford	LN9000	Base	1997	10.8 L 10834 6 M11 U/K 24
