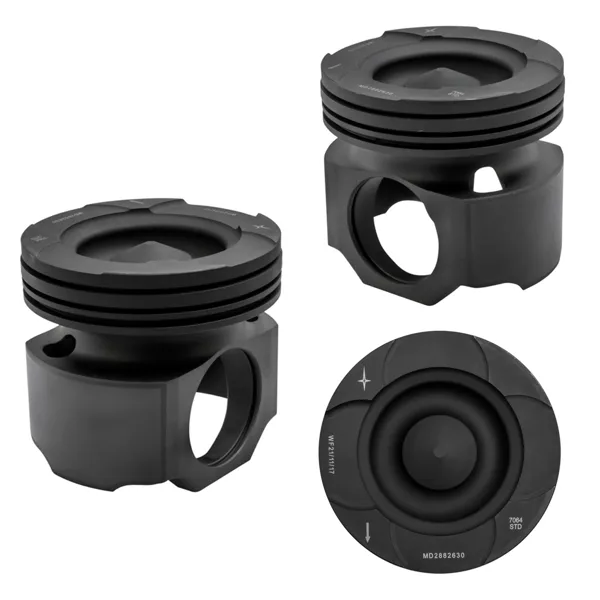

Pistón para motor Diesel

Name: Pistón para motor Diesel
Brand: MORESA
SKU: 7064 STD

No. parte7064 STD

Especificaciones técnicas

Buje para Perno IncorporadoNo

Cumple o Excede la Especificación OEMSi

Diámetro de Cazuela (mm)94.3 mm

Diámetro de Cazuela (pulg)3.713 pulg

Diámetro del Cilindro (mm)137 mm

Diámetro del Cilindro (pulg)5.393 pulg

Diámetro Exterior del Perno (mm)63.5 mm

Diámetro Exterior del Perno (pulg)2.5 pulg

Diámetro Nominal del Pistón (mm)136.88 mm

Diámetro Nominal del Pistón (pulg)5.388 pulg

Distancia de Compresión (mm)87.3 mm

Distancia de Compresión (pulg)3.437 pulg

Espesor 1er Anillo de Compresión (mm)2.8 mm

Espesor 1er Anillo de Compresión (pulg)0.110236220472441 pulg

Espesor 2do Anillo de Compresión (mm)3 mm

Espesor 2do Anillo de Compresión (pulg)0.118110236220472 pulg

Espesor Anillo de Aceite (mm)4 mm

Espesor Anillo de Aceite (pulg)0.15748031496063 pulg

Longitud del Perno (mm)85.4 mm

Longitud del Perno (pulg)3.36220472440945 pulg

Lubricante de Ensamble IncluidoNo

Material del AnilloHierro Gris

Material del PernoAcero

Material del PistónAcero

NotaStandard Size. 5.393incylinder diameter. Piston head type Dish. 3.362in Piston pin length. 1.642in bowl diameter

PosiciónN / A

Profundidad Cazuela ó Altura Domo (mm)-22.70 mm

Profundidad Cazuela ó Altura Domo (pulg)-0.894 pulg

SobremedidaNo

Tipo de Cabeza de PistónCazuela

Tipo de Ensamble del PernoFlotante

Tipo de FaldaCompleta

Tipo de GradoRegular

Vehículos compatibles con Pistón para motor Diesel (7064 STD)

Compatible con 377 versiones · mostrando 100

Marca	Modelo	Submodelo	Año	Motor
Freightliner	Argosy	Base	2012	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Argosy	Base	2008	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Argosy	Base	2007	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Argosy	Base	2003	15.0 - - 6 Signature 600 U/K U/K
Freightliner	Argosy	Base	2002	15.0 - - 6 Signature 600 U/K U/K
Freightliner	Argosy	Base	2001	15.0 - - 6 Signature 600 U/K U/K
Freightliner	Argosy	Base	2000	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Cascadia	125	2017	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Cascadia	125	2016	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Cascadia	125	2015	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Cascadia	125	2014	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Cascadia	125	2013	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Cascadia	125	2012	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Cascadia	125	2011	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Cascadia	125	2010	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Cascadia	125	2009	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Century Class	C120	2000	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Columbia	120	2014	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Columbia	120	2013	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Columbia	120	2012	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Columbia	120	2009	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Columbia	120	2008	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Columbia	120	2007	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Columbia	120	2003	15.0 - - 6 Signature 600 U/K U/K
Freightliner	Columbia	120	2002	15.0 - - 6 Signature 600 U/K U/K
Freightliner	Columbia	120	2001	15.0 - - 6 Signature 600 U/K U/K
Freightliner	Coronado	132	2016	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Coronado	132	2015	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Coronado	132	2014	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Coronado	132	2013	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Coronado	132	2012	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Coronado	132	2011	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	Coronado	132	2003	15.0 - - 6 Signature 600 U/K U/K
Freightliner	FLD132	Base	2011	14.9 L - 6 ISX 15.0 U/K 24
Freightliner	FLD132	Base	2007	14.9 L - 6 ISX 15.0 U/K 24
Indiana Phoenix	11 Yard	Base	2005	14.9 L - 6 ISX 15.0 U/K 24
Indiana Phoenix	11 Yard	Base	2004	14.9 L - 6 ISX 15.0 U/K 24
Indiana Phoenix	11 Yard	Base	2003	14.9 L - 6 ISX 15.0 U/K 24
International	5500i	Base	2008	14.9 L - 6 ISX 15.0 U/K 24
International	5500i	Base	2007	14.9 L - 6 ISX 15.0 U/K 24
International	5500i	Base	2006	14.9 L - 6 ISX 15.0 U/K 24
International	5500i	Base	2005	14.9 L - 6 ISX 15.0 U/K 24
International	5500i	Base	2004	14.9 L - 6 ISX 15.0 U/K 24
International	5600i	Base	2011	14.9 L - 6 ISX 15.0 U/K 24
International	5600i	Base	2010	14.9 L - 6 ISX 15.0 U/K 24
International	5600i	Base	2009	14.9 L - 6 ISX 15.0 U/K 24
International	5600i	Base	2008	14.9 L - 6 ISX 15.0 U/K 24
International	5600i	Base	2007	14.9 L - 6 ISX 15.0 U/K 24
International	5600i	Base	2006	14.9 L - 6 ISX 15.0 U/K 24
International	5600i	Base	2005	14.9 L - 6 ISX 15.0 U/K 24
International	5600i	Base	2004	15.0 - - 6 Signature 600 U/K U/K
International	5900i	Base	2012	14.9 L - 6 ISX 15.0 U/K 24
International	9200i SBA	Base	2008	14.9 L - 6 ISX 15.0 U/K 24
International	9200i SBA	Base	2007	14.9 L - 6 ISX 15.0 U/K 24
International	9200i SBA	Base	2006	14.9 L - 6 ISX 15.0 U/K 24
International	9200i SBA	Base	2005	14.9 L - 6 ISX 15.0 U/K 24
International	9200i SBA	Base	2004	15.0 - - 6 Signature 600 U/K U/K
International	9200i SBA	Base	2003	14.9 L - 6 ISX 15.0 U/K 24
International	9400i SBA	Base	2007	14.9 L - 6 ISX 15.0 U/K 24
International	9400i SBA	Base	2006	14.9 L - 6 ISX 15.0 U/K 24
International	9400i SBA	Base	2005	14.9 L - 6 ISX 15.0 U/K 24
International	9400i SBA	Base	2004	14.9 L - 6 ISX 15.0 U/K 24
International	9400i SBA	Base	2003	14.9 L - 6 ISX 15.0 U/K 24
International	9900i	Base	2017	14.9 L - 6 ISX 15.0 U/K 24
International	9900i	Base	2016	14.9 L - 6 ISX 15.0 U/K 24
International	9900i	Base	2015	14.9 L - 6 ISX 15.0 U/K 24
International	9900i	Base	2014	14.9 L - 6 ISX 15.0 U/K 24
International	9900i	Base	2012	14.9 L - 6 ISX 15.0 U/K 24
International	9900i	Base	2008	14.9 L - 6 ISX 15.0 U/K 24
International	9900i	Base	2007	14.9 L - 6 ISX 15.0 U/K 24
International	9900i	Base	2006	14.9 L - 6 ISX 15.0 U/K 24
International	9900i	Base	2005	14.9 L - 6 ISX 15.0 U/K 24
International	9900i	Base	2004	14.9 L - 6 ISX 15.0 U/K 24
International	9900i	Base	2003	14.9 L - 6 ISX 15.0 U/K 24
International	9900ix	Base	2008	14.9 L - 6 ISX 15.0 U/K 24
International	9900ix	Base	2007	14.9 L - 6 ISX 15.0 U/K 24
International	9900ix	Base	2006	14.9 L - 6 ISX 15.0 U/K 24
International	9900ix	Base	2005	14.9 L - 6 ISX 15.0 U/K 24
International	9900ix	Base	2004	14.9 L - 6 ISX 15.0 U/K 24
International	HX620	Base	2018	14.9 L - 6 X15 U/K 24
International	HX620	Base	2017	14.9 L - 6 X15 U/K 24
International	LoneStar	Base	2017	14.9 L - 6 ISX 15.0 U/K 24
International	LoneStar	Base	2016	14.9 L - 6 ISX 15.0 U/K 24
International	LoneStar	Base	2015	14.9 L - 6 ISX 15.0 U/K 24
International	LoneStar	Base	2014	14.9 L - 6 ISX 15.0 U/K 24
International	LoneStar	Base	2012	14.9 L - 6 ISX 15.0 U/K 24
International	LT625	Base	2018	14.9 L - 6 X15 U/K 24
International	ProStar	Pro LF687	2018	14.9 L - 6 ISX 15.0 U/K 24
International	ProStar	Pro LF687	2017	14.9 L - 6 ISX 15.0 U/K 24
International	ProStar	Pro LF687	2016	14.9 L - 6 ISX 15.0 U/K 24
International	ProStar	Pro LF687	2015	14.9 L - 6 ISX 15.0 U/K 24
International	ProStar	Pro LF687	2014	14.9 L - 6 ISX 15.0 U/K 24
International	ProStar	Pro LF687	2013	14.9 L - 6 ISX 15.0 U/K 24
International	ProStar	Pro LF637 Limited	2012	14.9 L - 6 ISX 15.0 U/K 24
International	ProStar	Pro LF637 Limited	2008	14.9 L - 6 ISX 15.0 U/K 24
Kenworth	C500	Base	2015	14.9 L - 6 ISX 15.0 U/K 24
Kenworth	C500	Base	2014	14.9 L - 6 ISX 15.0 U/K 24
Kenworth	C500	Base	2013	14.9 L - 6 ISX 15.0 U/K 24
Kenworth	C500	Base	2012	14.9 L - 6 ISX 15.0 U/K 24
Kenworth	C500	Base	2011	14.9 L - 6 ISX 15.0 U/K 24
