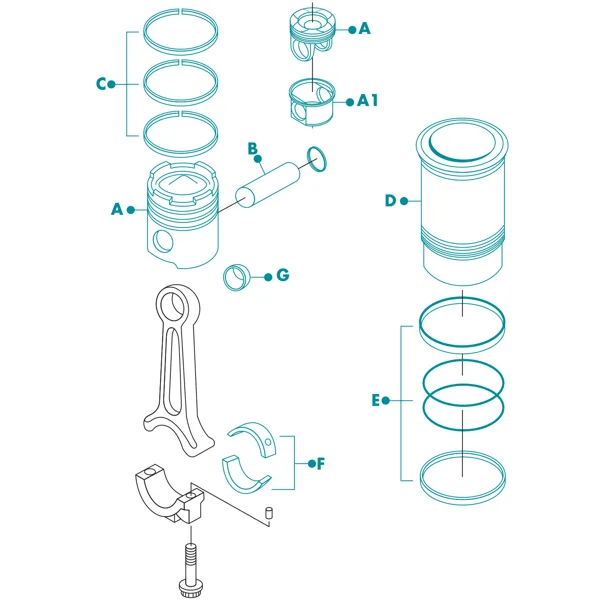

Pistón para motor Diesel

Name: Pistón para motor Diesel
Brand: MORESA
SKU: 782 STD

No. parte782 STD

Especificaciones técnicas

Buje para Perno IncorporadoNo

Cumple o Excede la Especificación OEMSi

Diámetro de Cazuela (mm)107.95 mm

Diámetro de Cazuela (pulg)4.25 pulg

Diámetro del Cilindro (mm)139.7 mm

Diámetro del Cilindro (pulg)5.5 pulg

Diámetro Exterior del Perno (mm)63.5 mm

Diámetro Exterior del Perno (pulg)2.5 pulg

Diámetro Nominal del Pistón (mm)138.58 mm

Diámetro Nominal del Pistón (pulg)5.455 pulg

Distancia de Compresión (mm)102.36 mm

Distancia de Compresión (pulg)4.03 pulg

Espesor 1er Anillo de Compresión (mm)3.96 mm

Espesor 1er Anillo de Compresión (pulg)0.15 pulg

Espesor 2do Anillo de Compresión (mm)3.18 mm

Espesor 2do Anillo de Compresión (pulg)0.125 pulg

Espesor Anillo de Aceite (mm)4.76 mm

Espesor Anillo de Aceite (pulg)0.187 pulg

Longitud del Perno (mm)114.05 mm

Longitud del Perno (pulg)4.49 pulg

Lubricante de Ensamble IncluidoNo

Material del AnilloHierro Gris

Material del PernoAcero

Material del PistónAleación de Aluminio

NotaStandard Size. 5.5incylinder diameter. Piston head type Dish. 4.49in Piston pin length. 2.05in bowl diameter

PosiciónN / A

Profundidad Cazuela ó Altura Domo (mm)-15.75 mm

Profundidad Cazuela ó Altura Domo (pulg)-0.620 pulg

SobremedidaNo

Tipo de Cabeza de PistónCazuela

Tipo de Ensamble del PernoFlotante

Tipo de FaldaCompleta

Tipo de GradoRegular

Vehículos compatibles con Pistón para motor Diesel (782 STD)

Compatible con 935 versiones · mostrando 100

Marca	Modelo	Submodelo	Año	Motor
Autocar	ACL	Base	1986	14.0 L 14013 6 N14 U/K 12
Autocar	ACL	Base	1985	14.0 L 14013 6 N14 U/K 12
Autocar	ACL	Base	1984	14.0 L 14013 6 N14 U/K 12
Autocar	ACL	Base	1983	14.0 L 14013 6 N14 U/K 12
Autocar	ACL	Base	1982	14.0 L 14013 6 N14 U/K 12
Autocar	ACL	Base	1981	14.0 L 14013 6 N14 U/K 12
Autocar	AT	Base	1988	14.0 L 14013 6 N14 U/K 12
Autocar	AT	Base	1987	14.0 L 14013 6 N14 U/K 12
Autocar	AT	Base	1986	14.0 L 14013 6 N14 U/K 12
Autocar	AT	Base	1985	14.0 L 14013 6 N14 U/K 12
Autocar	AT	Base	1984	14.0 L 14013 6 N14 U/K 12
Autocar	AT	Base	1983	14.0 L 14013 6 N14 U/K 12
Autocar	DK	Base	1988	14.0 L 14013 6 N14 U/K 12
Autocar	DK	Base	1987	14.0 L 14013 6 N14 U/K 12
Autocar	DK	Base	1986	14.0 L 14013 6 N14 U/K 12
Autocar	DK	Base	1985	14.0 L 14013 6 N14 U/K 12
Autocar	DK	Base	1984	14.0 L 14013 6 N14 U/K 12
Autocar	DK	Base	1983	14.0 L 14013 6 N14 U/K 12
Autocar	DS	Base	1988	14.0 L 14013 6 N14 U/K 12
Autocar	DS	Base	1987	14.0 L 14013 6 N14 U/K 12
Autocar	DS	Base	1986	14.0 L 14013 6 N14 U/K 12
Autocar	DS	Base	1985	14.0 L 14013 6 N14 U/K 12
Autocar	DS	Base	1984	14.0 L 14013 6 N14 U/K 12
Autocar	DS	Base	1983	14.0 L 14013 6 N14 U/K 12
Autocar	S	Base	1983	14.0 L 14013 6 N14 U/K 12
Autocar	S	Base	1982	14.0 L 14013 6 N14 U/K 12
Autocar	S	Base	1981	14.0 L 14013 6 N14 U/K 12
Chevrolet	B60	B6P042	1986	14.0 L 14013 6 N14 U/K 12
Chevrolet	B60	B6P042	1985	14.0 L 14013 6 N14 U/K 12
Chevrolet	C60	C6D042	1986	14.0 L 14013 6 N14 U/K 12
Chevrolet	C70	C7D042	1986	14.0 L 14013 6 N14 U/K 12
Crane Carrier	Centurion	Base	1987	14.0 L 14013 6 N14 U/K 12
Crane Carrier	Century II	Base	1989	14.0 L 14013 6 N14 U/K 12
Crane Carrier	Century II	Base	1988	14.0 L 14013 6 N14 U/K 12
Crane Carrier	Century II	Base	1987	14.0 L 14013 6 N14 U/K 12
Crane Carrier	IFL	Base	1990	14.0 L 14013 6 N14 U/K 12
Crane Carrier	IFL	Base	1989	14.0 L 14013 6 N14 U/K 12
Crane Carrier	IFL	Base	1988	14.0 L 14013 6 N14 U/K 12
Crane Carrier	IFL	Base	1987	14.0 L 14013 6 N14 U/K 12
Crane Carrier	ISL	Base	1987	14.0 L 14013 6 N14 U/K 12
Crane Carrier	Low Entry	Base	1990	14.0 L 14013 6 N14 U/K 12
Crane Carrier	Low Entry	Base	1989	14.0 L 14013 6 N14 U/K 12
Crane Carrier	Low Entry	Base	1988	14.0 L 14013 6 N14 U/K 12
Crane Carrier	Low Entry	Base	1987	14.0 L 14013 6 N14 U/K 12
Crown Coach	School Bus	3A-40C	1991	14.0 L 14013 6 N14 U/K 12
Crown Coach	School Bus	3A-40	1989	14.0 L 14013 6 N14 U/K 12
Crown Coach	School Bus	2A-36	1988	14.0 L 14013 6 N14 U/K 12
Crown Coach	School Bus	3A-40	1988	14.0 L 14013 6 N14 U/K 12
Diamond Reo	C116	C11664DB	1992	14.0 L 14013 6 N14 U/K 12
Diamond Reo	C116	C11664DBT	1991	14.0 L 14013 6 N14 U/K 12
Diamond Reo	C116	C11664DFT	1991	14.0 L 14013 6 N14 U/K 12
Diamond Reo	C116	C11664DB	1990	14.0 L 14013 6 N14 U/K 12
Diamond Reo	C116	C11664DF	1990	14.0 L 14013 6 N14 U/K 12
Diamond Reo	C120	C12064DB	1998	14.0 L 14013 6 N14 U/K 12
Diamond Reo	C120	C12064DB	1992	14.0 L 14013 6 N14 U/K 12
Duplex	D8400	Base	1997	14.0 L 14013 6 N14 U/K 12
Duplex	D8400	Base	1995	14.0 L 14013 6 N14 U/K 12
Duplex	D9400	Base	1997	14.0 L 14013 6 N14 U/K 12
Duplex	D9400	Base	1995	14.0 L 14013 6 N14 U/K 12
Emergency One	Emergency One	Base	2000	14.0 L 14013 6 N14 U/K 12
Emergency One	Emergency One	Base	1999	14.0 L 14013 6 N14 U/K 12
Emergency One	Emergency One	Base	1998	14.0 L 14013 6 N14 U/K 12
Emergency One	Emergency One	Base	1997	14.0 L 14063 6 Series 60 U/K 24
Emergency One	Emergency One	Base	1995	14.0 L 14013 6 N14 U/K 12
Emergency One	Emergency One	Base	1994	14.0 L 14013 6 N14 U/K 12
Emergency One	Emergency One	Base	1993	14.0 L 14013 6 N14 U/K 12
Federal Motors	Federal Motors	Base	1989	14.0 L 14013 6 N14 U/K 12
Federal Motors	Federal Motors	Base	1988	14.0 L 14013 6 N14 U/K 12
Freightliner	Argosy	Base	2002	14.0 L 14013 6 N14 U/K 12
Freightliner	Argosy	Base	2001	14.0 L 14013 6 N14 U/K 12
Freightliner	Argosy	Base	2000	14.0 L 14013 6 N14 U/K 12
Freightliner	Argosy	Base	1999	14.0 L 14013 6 N14 U/K 12
Freightliner	Century Class	CST120	2002	14.0 L 14013 6 N14 U/K 12
Freightliner	Century Class	C120	2001	14.0 L 14013 6 N14 U/K 12
Freightliner	Century Class	CST120	2001	14.0 L 14013 6 N14 U/K 12
Freightliner	Century Class	C120	2000	14.0 L 14013 6 N14 U/K 12
Freightliner	Century Class	C120	1999	14.0 L 14013 6 N14 U/K 12
Freightliner	Century Class	C120	1998	14.0 L 14013 6 N14 U/K 12
Freightliner	Century Class	C120	1997	14.0 L 14013 6 N14 U/K 12
Freightliner	Classic	Base	2002	14.0 L 14013 6 N14 U/K 12
Freightliner	Classic	Base	2001	14.0 L 14013 6 N14 U/K 12
Freightliner	Classic XL	Base	2002	14.0 L 14013 6 N14 U/K 12
Freightliner	Classic XL	Base	2001	14.0 L 14013 6 N14 U/K 12
Freightliner	Columbia	120	2002	14.0 L 14013 6 N14 U/K 12
Freightliner	Columbia	120	2001	14.0 L 14013 6 N14 U/K 12
Freightliner	FL106	FL10664ST	2000	14.0 L 14013 6 N14 U/K 12
FWD Corporation	C	Base	1989	14.0 L 14013 6 N14 U/K 12
FWD Corporation	C	Base	1988	14.0 L 14013 6 N14 U/K 12
FWD Corporation	Cranecarrier	Base	1992	14.0 L 14013 6 N14 U/K 12
FWD Corporation	Cranecarrier	Base	1991	14.0 L 14013 6 N14 U/K 12
FWD Corporation	Cranecarrier	Base	1990	14.0 L 14013 6 N14 U/K 12
FWD Corporation	Cranecarrier	Base	1989	14.0 L 14013 6 N14 U/K 12
FWD Corporation	Cranecarrier	Base	1988	14.0 L 14013 6 N14 U/K 12
FWD Corporation	Cranecarrier	Base	1987	14.0 L 14013 6 N14 U/K 12
FWD Corporation	Cranecarrier	Base	1986	14.0 L 14013 6 N14 U/K 12
FWD Corporation	R	Base	1991	14.0 L 14013 6 N14 U/K 12
FWD Corporation	R	Base	1990	14.0 L 14013 6 N14 U/K 12
FWD Corporation	R	Base	1989	14.0 L 14013 6 N14 U/K 12
FWD Corporation	R	Base	1988	14.0 L 14013 6 N14 U/K 12
FWD Corporation	R	Base	1987	14.0 L 14013 6 N14 U/K 12
