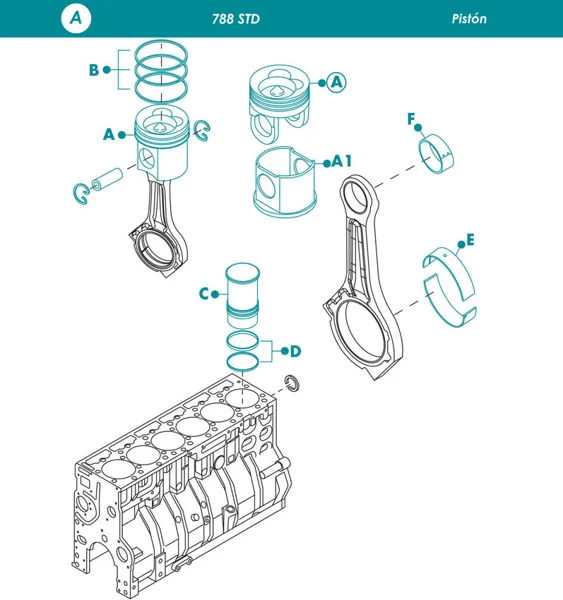

Pistón para motor Diesel

Name: Pistón para motor Diesel
Brand: MORESA
SKU: 788 STD

No. parte788 STD

Especificaciones técnicas

Buje para Perno IncorporadoNo

Cumple o Excede la Especificación OEMSi

Diámetro de Cazuela (mm)63.5 mm

Diámetro de Cazuela (pulg)2.5 pulg

Diámetro del Cilindro (mm)109.22 mm

Diámetro del Cilindro (pulg)4.3 pulg

Diámetro Exterior del Perno (mm)46.36 mm

Diámetro Exterior del Perno (pulg)1.826 pulg

Diámetro Nominal del Pistón (mm)109.1 mm

Diámetro Nominal del Pistón (pulg)4.295 pulg

Distancia de Compresión (mm)81.7 mm

Distancia de Compresión (pulg)3.216 pulg

Espesor 1er Anillo de Compresión (mm)3.18 mm

Espesor 1er Anillo de Compresión (pulg)0.12 pulg

Espesor 2do Anillo de Compresión (mm)3.18 mm

Espesor 2do Anillo de Compresión (pulg)0.125 pulg

Espesor Anillo de Aceite (mm)3.96 mm

Espesor Anillo de Aceite (pulg)0.155 pulg

Longitud del Perno (mm)84.25 mm

Longitud del Perno (pulg)3.317 pulg

Lubricante de Ensamble IncluidoNo

Material del AnilloHierro Gris

Material del PernoAcero

Material del PistónAleación de Aluminio

NotaStandard Size. 4.3incylinder diameter. Piston head type Dish. 3.317in Piston pin length. 2.05in bowl diameter

PosiciónN / A

Profundidad Cazuela ó Altura Domo (mm)-23.10 mm

Profundidad Cazuela ó Altura Domo (pulg)-0.909 pulg

SobremedidaNo

Tipo de Cabeza de PistónCazuela

Tipo de Ensamble del PernoFlotante

Tipo de FaldaCompleta

Tipo de GradoRegular

Vehículos compatibles con Pistón para motor Diesel (788 STD)

Compatible con 176 versiones · mostrando 100

Marca	Modelo	Submodelo	Año	Motor
Genesis Transit Buses	Genesis	Base	1996	7.6 L - 6 DT466 U/K 12
IC Corporation	1300 FBC	Base	2010	7.6 L - 6 DT466 U/K 12
IC Corporation	1300 FBC	Base	2009	7.6 L - 6 DT466 U/K 12
IC Corporation	1300 FBC	Base	2008	7.6 L - 6 DT466 U/K 12
IC Corporation	1300 FBC	Base	2007	7.6 L - 6 DT466 U/K 12
IC Corporation	1300 FBC	Base	2006	7.6 L - 6 DT466 U/K 12
IC Corporation	3000 Chassis	Base	2006	7.6 L - 6 DT466 U/K 12
IC Corporation	3000 Chassis	Base	2005	7.6 L - 6 DT466 U/K 12
IC Corporation	3000 IC	Base	2007	7.6 L - 6 DT466 U/K 12
IC Corporation	3000 IC	Base	2006	7.6 L - 6 DT466 U/K 12
IC Corporation	3000 IC	Base	2004	7.6 L - 6 DT466 U/K 12
IC Corporation	3000 IC	Base	2002	7.6 L - 6 DT466 U/K 12
IC Corporation	3300 Chassis	Base	2005	7.6 L - 6 DT466 U/K 12
IC Corporation	3800	Base	2003	7.6 L - 6 DT466 U/K 12
IC Corporation	CE Commercial	Base	2010	7.6 L - 6 DT466 U/K 12
IC Corporation	CE Commercial	Base	2008	7.6 L - 6 DT466 U/K 12
IC Corporation	CE Commercial	Base	2006	7.6 L - 6 DT466 U/K 12
IC Corporation	CE Commercial	Base	2005	7.6 L - 6 DT466 U/K 12
IC Corporation	CE Commercial	Base	2004	7.6 L - 6 DT466 U/K 12
IC Corporation	CE Commercial	Base	2003	7.6 L - 6 DT466 U/K 12
IC Corporation	CE Integrated	Base	2010	7.6 L - 6 DT466 U/K 12
IC Corporation	CE Integrated	Base	2009	7.6 L - 6 DT466 U/K 12
IC Corporation	CE Integrated	Base	2008	7.6 L - 6 DT466 U/K 12
IC Corporation	CE Integrated	Base	2007	7.6 L - 6 DT466 U/K 12
IC Corporation	CE Integrated	Base	2006	7.6 L - 6 DT466 U/K 12
IC Corporation	CE Integrated	Base	2005	7.6 L - 6 DT466 U/K 12
IC Corporation	CE School Bus	Base	2010	7.6 L - 6 DT466 U/K 12
IC Corporation	CE School Bus	Base	2004	7.6 L - 6 DT466 U/K 12
IC Corporation	CE School Bus	Base	2003	7.6 L - 6 DT466 U/K 12
IC Corporation	FE Commercial	Base	2010	7.6 L - 6 DT466 U/K 12
IC Corporation	FE Commercial	Base	2009	7.6 L - 6 DT466 U/K 12
IC Corporation	FE Commercial	Base	2008	7.6 L - 6 DT466 U/K 12
IC Corporation	FE Commercial	Base	2004	7.6 L - 6 DT466 U/K 12
IC Corporation	FE Commercial	Base	2003	7.6 L - 6 DT466 U/K 12
IC Corporation	FE Integrated	Base	2008	7.6 L - 6 DT466 U/K 12
IC Corporation	FE Integrated	Base	2007	7.6 L - 6 DT466 U/K 12
IC Corporation	FE Integrated	Base	2005	7.6 L - 6 DT466 U/K 12
IC Corporation	FE School Bus	Base	2010	7.6 L - 6 DT466 U/K 12
IC Corporation	FE School Bus	Base	2009	7.6 L - 6 DT466 U/K 12
IC Corporation	FE School Bus	Base	2008	7.6 L - 6 DT466 U/K 12
IC Corporation	FE School Bus	Base	2007	7.6 L - 6 DT466 U/K 12
IC Corporation	FE School Bus	Base	2006	7.6 L - 6 DT466 U/K 12
IC Corporation	FE School Bus	Base	2004	7.6 L - 6 DT466 U/K 12
IC Corporation	FE School Bus	Base	2003	7.6 L - 6 DT466 U/K 12
IC Corporation	HC Integrated Commercial	Base	2010	7.6 L - 6 DT466 U/K 12
IC Corporation	HC Integrated Commercial	Base	2009	7.6 L - 6 DT466 U/K 12
IC Corporation	HC Integrated Commercial	Base	2008	7.6 L - 6 DT466 U/K 12
IC Corporation	RE Commercial	Base	2010	7.6 L - 6 DT466 U/K 12
IC Corporation	RE Commercial	Base	2009	7.6 L - 6 DT466 U/K 12
IC Corporation	RE Commercial	Base	2008	7.6 L - 6 DT466 U/K 12
IC Corporation	RE Commercial	Base	2007	7.6 L - 6 DT466 U/K 12
IC Corporation	RE Commercial	Base	2006	7.6 L - 6 DT466 U/K 12
IC Corporation	RE Commercial	Base	2005	7.6 L - 6 DT466 U/K 12
IC Corporation	RE Commercial	Base	2004	7.6 L - 6 DT466 U/K 12
IC Corporation	RE Commercial	Base	2003	7.6 L - 6 DT466 U/K 12
IC Corporation	RE Integrated	Base	2005	7.6 L - 6 DT466 U/K 12
IC Corporation	RE School Bus	Base	2010	7.6 L - 6 DT466 U/K 12
IC Corporation	RE School Bus	Base	2009	7.6 L - 6 DT466 U/K 12
IC Corporation	RE School Bus	Base	2008	7.6 L - 6 DT466 U/K 12
IC Corporation	RE School Bus	Base	2007	7.6 L - 6 DT466 U/K 12
IC Corporation	RE School Bus	Base	2006	7.6 L - 6 DT466 U/K 12
IC Corporation	RE School Bus	Base	2004	7.6 L - 6 DT466 U/K 12
IC Corporation	RE School Bus	Base	2003	7.6 L - 6 DT466 U/K 12
International	2554	Base	2002	7.6 L - 6 DT466 U/K 12
International	2554	Base	2001	7.6 L - 6 DT466 U/K 12
International	2554	Base	2000	7.6 L - 6 DT466 U/K 12
International	2554	Base	1999	7.6 L - 6 DT466 U/K 12
International	2554	Base	1998	7.6 L - 6 DT466 U/K 12
International	2554	Base	1997	7.6 L - 6 DT466 U/K 12
International	2554	Base	1996	7.6 L - 6 DT466 U/K 12
International	2574	Base	2003	7.6 L - 6 DT466 U/K 12
International	2574	Base	2002	7.6 L - 6 DT466 U/K 12
International	2574	Base	2001	7.6 L - 6 DT466 U/K 12
International	2654	Base	2002	7.6 L - 6 DT466 U/K 12
International	2654	Base	2001	7.6 L - 6 DT466 U/K 12
International	2654	Base	2000	7.6 L - 6 DT466 U/K 12
International	2654	Base	1999	7.6 L - 6 DT466 U/K 12
International	2654	Base	1998	7.6 L - 6 DT466 U/K 12
International	2654	Base	1997	7.6 L - 6 DT466 U/K 12
International	2654	Base	1996	7.6 L - 6 DT466 U/K 12
International	2674	Base	2003	7.6 L - 6 DT466 U/K 12
International	2674	Base	2002	7.6 L - 6 DT466 U/K 12
International	2674	Base	2001	7.6 L - 6 DT466 U/K 12
International	3200	Base	2007	7.6 L - 6 DT466 U/K 12
International	4300	Base	2008	7.6 L - 6 DT466 U/K 12
International	4300	Base	2007	7.6 L - 6 DT466 U/K 12
International	4300	Base	2006	7.6 L - 6 DT466 U/K 12
International	4300	Base	2005	7.6 L - 6 DT466 U/K 12
International	4300	Base	2004	7.6 L - 6 DT466 U/K 12
International	4300	Base	2003	7.6 L - 6 DT466 U/K 12
International	4300	Base	2002	7.6 L - 6 DT466 U/K 12
International	4400	Base	2008	7.6 L - 6 DT466 U/K 12
International	4400	Base	2007	7.6 L - 6 DT466 U/K 12
International	4400	Base	2006	7.6 L - 6 DT466 U/K 12
International	4400	Base	2005	7.6 L - 6 DT466 U/K 12
International	4400	Base	2004	7.6 L - 6 DT466 U/K 12
International	4400	Base	2003	7.6 L - 6 DT466 U/K 12
International	4400	Base	2002	7.6 L - 6 DT466 U/K 12
International	4700	Base	2004	7.6 L - 6 DT466 U/K 12
International	4700	Base	2003	7.6 L - 6 DT466 U/K 12
