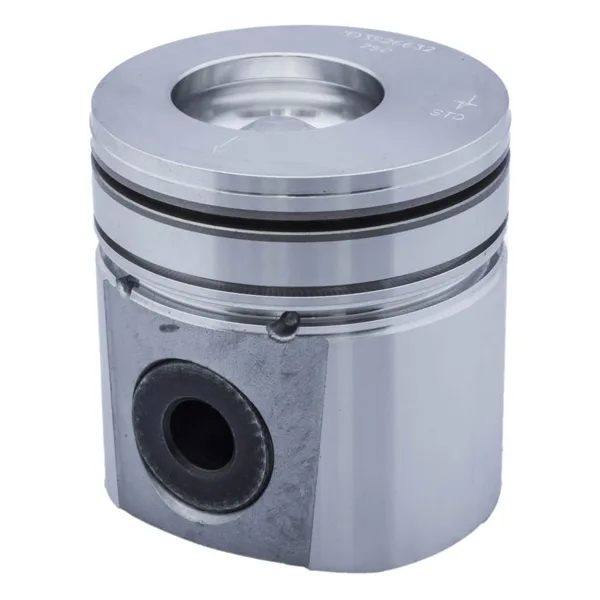

Pistón para motor Diesel

Name: Pistón para motor Diesel
Brand: MORESA
SKU: 798 STD

No. parte798 STD

Especificaciones técnicas

Buje para Perno IncorporadoNo

Cumple o Excede la Especificación OEMSi

Diámetro de Cazuela (mm)51.2 mm

Diámetro de Cazuela (pulg)2.016 pulg

Diámetro del Cilindro (mm)102 mm

Diámetro del Cilindro (pulg)4.015 pulg

Diámetro Exterior del Perno (mm)40 mm

Diámetro Exterior del Perno (pulg)1.575 pulg

Diámetro Nominal del Pistón (mm)101.88 mm

Diámetro Nominal del Pistón (pulg)4.011 pulg

Distancia de Compresión (mm)71.6 mm

Distancia de Compresión (pulg)2.819 pulg

Espesor 1er Anillo de Compresión (mm)2.8 mm

Espesor 1er Anillo de Compresión (pulg)0.11 pulg

Espesor 2do Anillo de Compresión (mm)2.4 mm

Espesor 2do Anillo de Compresión (pulg)0.094 pulg

Espesor Anillo de Aceite (mm)4 mm

Espesor Anillo de Aceite (pulg)0.157 pulg

Longitud del Perno (mm)82.85 mm

Longitud del Perno (pulg)3.262 pulg

Lubricante de Ensamble IncluidoNo

Material del AnilloHierro Gris

Material del PernoAcero

Material del PistónAleación de Aluminio

NotaStandard Size. 4.015incylinder diameter. Piston head type Dish. 3.262in Piston pin length. 2.05in bowl diameter

PosiciónN / A

Profundidad Cazuela ó Altura Domo (mm)-22.00 mm

Profundidad Cazuela ó Altura Domo (pulg)-0.866 pulg

SobremedidaNo

Tipo de Cabeza de PistónCazuela

Tipo de Ensamble del PernoFlotante

Tipo de FaldaCompleta

Tipo de GradoRegular

Vehículos compatibles con Pistón para motor Diesel (798 STD)

Compatible con 669 versiones · mostrando 100

Marca	Modelo	Submodelo	Año	Motor
Bering	MD23M	Base	2000	5.9 L - 6 6BT5.9 U/K 12
Bering	MD23M	Base	1999	5.9 L - 6 6BT5.9 U/K 12
Bering	MD26M	Base	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3503-3604	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3605-3706	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3707-3808	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3904-4100	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3109-3400	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3401-3502	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3809-3903	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3904-4100	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3109-3400	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3401-3502	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3503-3604	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3605-3706	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3707-3808	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3809-3903	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3904-4100	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3109-3400	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3401-3502	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3503-3604	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3605-3706	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3707-3808	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3904-4100	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3109-3400	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3401-3502	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3503-3604	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3605-3706	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3707-3808	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American FE	AAC3605-3706	1998	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American RE	AAC3109-3400	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American RE	AAC3401-3502	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American RE	AAC3605-3706	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American RE	AAC3904-4100	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American RE	AAC3109-3400	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American RE	AAC3401-3502	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American RE	AAC3605-3706	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American RE	AAC3904-4100	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American RE	AAC3109-3400	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American RE	AAC3401-3502	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American RE	AAC3605-3706	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American RE	AAC3904-4100	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American RE	AAC3109-3400	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American RE	AAC3605-3706	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	All American RE	AAC3904-4100	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2200-2509	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3904-4100	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2701-2809	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2810-3006	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3109-3400	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3401-3502	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3503-3604	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3605-3706	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3707-3808	2002	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2810-3006	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3109-3400	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3401-3502	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3503-3604	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3605-3706	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3707-3808	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2200-2509	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3904-4100	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2701-2809	2001	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2810-3006	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3109-3400	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3401-3502	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3503-3604	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3605-3706	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3707-3808	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2200-2509	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2701-2809	2000	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3401-3502	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3503-3604	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3605-3706	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3707-3808	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3904-4100	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2200-2509	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2701-2809	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2810-3006	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3109-3400	1999	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3503-3604	1998	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3605-3706	1998	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3707-3808	1998	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3904-4100	1998	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2200-2509	1998	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2701-2809	1998	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2810-3006	1998	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3109-3400	1998	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3401-3502	1998	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3109-3400	1997	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3401-3502	1997	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3503-3604	1997	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3605-3706	1997	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3904-4100	1997	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2200-2509	1997	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2701-2809	1997	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2810-3006	1997	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3605-3706	1996	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM3707-3808	1996	5.9 L - 6 6BT5.9 U/K 12
Blue Bird	Commercial Bus	COM2200-2509	1996	5.9 L - 6 6BT5.9 U/K 12
